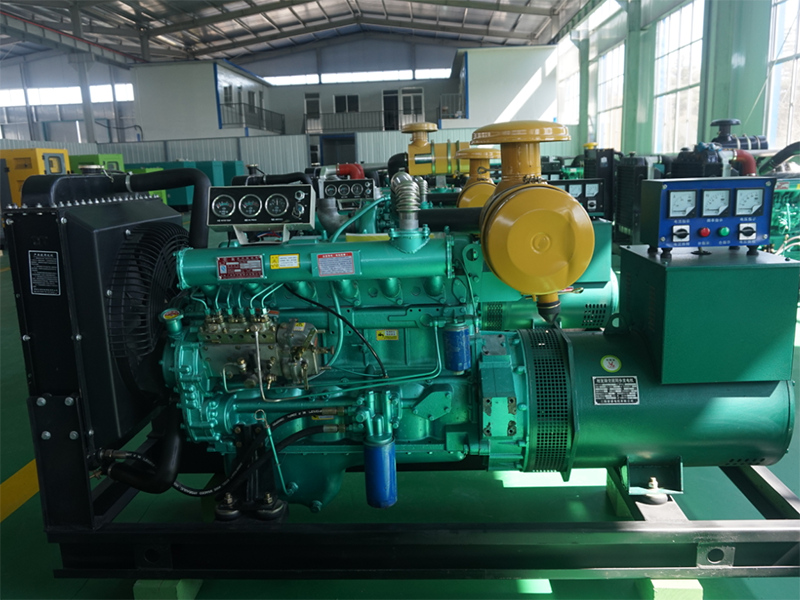

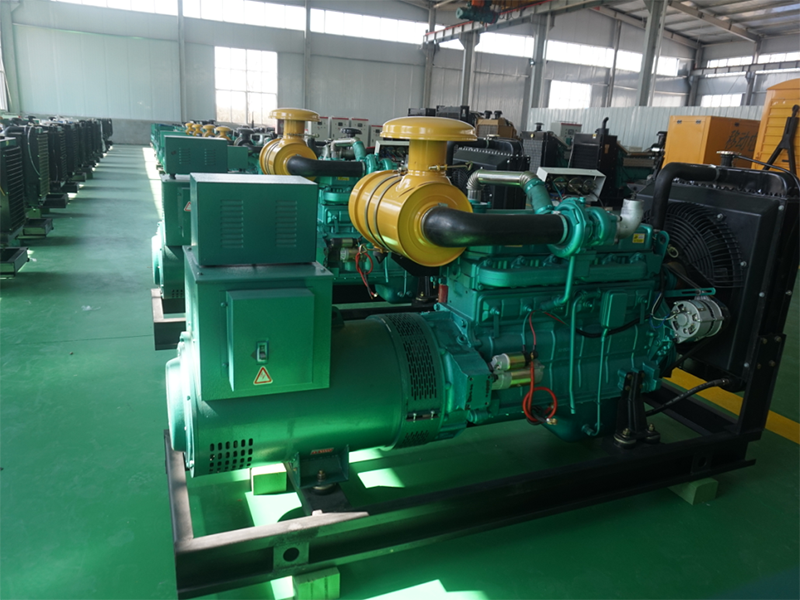

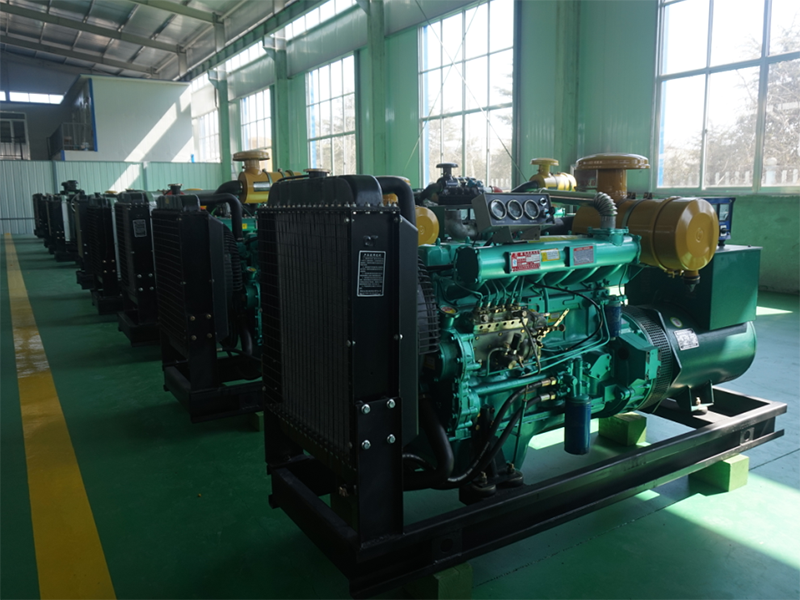

75KW柴油發電機組
| 濰坊系列小功率發電機組采用四沖程直噴式柴油機，體積小、功率大。發電機選用STC系列或者無刷系列三次諧波自勵恒壓，啟動電機能力強，整個機組外形美觀，性能可靠，適用于要求價廉物美的用戶。 Weifang series of small power generating sets adopt four-stroke direct-injection diesel engine, small size and large power. The generator USES STC series or brushless series of three times harmonic self-excited constant pressure, the starting motor ability is strong, the whole unit is beautiful, the performance is reliable, it is applicable to the users who demand cheap and fine quality |
| 機組型號 | 輸出功率KW | 輸出功率KVA | 電流A | 柴油機型號 | 缸數 | 缸徑*行程mm | 潤滑油容量L | 油耗g/kw.g | 機組外形尺寸L×W×H | 機組重量kg |
| FM20GF | 20 | 25 | 36 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
| FM24GF | 24 | 30 | 43.2 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
| FM30GF | 30 | 37.5 | 54 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
| FM40GF | 40 | 50 | 72 | K4100ZD | 4 | 100*115 | 10 | 238 | 1700*800*1350 | 650 |
| FM50GF | 50 | 62.5 | 90 | ZH4105ZD | 4 | 105*115 | 12 | 238 | 1800*800*1400 | 800 |
| FM75GF | 75 | 93.75 | 135 | R6105ZD | 6 | 105*115 | 15 | 238 | 2100*850*1500 | 1000 |
| FM100GF | 100 | 125 | 180 | R6105AZLD | 6 | 105*115 | 15 | 238 | 2200*850*1650 | 1100 |
| FM120GF | 120 | 150 | 216 | R6105IZLD | 6 | 105*120 | 15 | 238 | 2200*850*1650 | 1200 |
| FM150GF | 150 | 187.5 | 270 | 6110IZLD | 6 | 110*115 | 18 | 238 | 2400*850*1650 | 1300 |
| FM200GF | 200 | 250 | 360 | 6126ZLD | 6 | 126*120 | 28 | 238 | 2600*900*1750 | 1800 |
| FM250GF | 250 | 312.5 | 450 | 6126ALD | 6 | 126*125 | 28 | 238 | 2600*900*1750 | 2000 |
| FM300GF | 300 | 375 | 540 | 6126IZLD | 6 | 126*130 | 28 | 238 | 2800*900*1800 | 2200 |
| 1.以上技術參數轉速為1500RPM，頻率50HZ，額定電壓400/230V，功率因數0.8，接線方式為三相四線。 2.發電機可以根據客戶需求，選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考，如有更改恕不另行通知。 | ||||||||||
| 標準配置 Standard equipment： 發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器 、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame | ||||||||||
| 可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater |
75KW柴油發電機組 2018-5-10 本文被閱讀 6501 次
